implementing redis pub/sub with .net aspire: a simple guide
- Authors
- Name
- Emin Vergil
- @eminvergil
what is redis pub/sub?
redis pub/sub (publish/subscribe) is a messaging pattern where:
- publishers send messages to channels
- subscribers listen to specific channels
- publishers and subscribers are decoupled
- messages are delivered in real-time
first, let's look at the apphost configuration:
App Host:
var builder = DistributedApplication.CreateBuilder(args);
var redis = builder.AddRedis("redis");
builder.AddProject<Projects.Api>("api")
.WithReference(redis)
.WithReplicas(1);
builder.AddProject<Projects.Worker>("worker")
.WithReference(redis);
await builder.Build().RunAsync();
in this configuration, we set up redis. you need to install Aspire.Hosting.Redis
package.
the application consists of an api service for publishing messages and a background worker for reading them. the api service sends the message to redis channel:
Api/Program.cs
// ... (initialization code)
builder.AddRedisDistributedCache("redis");
as you can see we need to add redis to api service first. for this you need to install Aspire.StackExchange.Redis.DistributedCaching
package.
app.MapPost("/send-message", async ([FromBody] SendMessageRequest request, IConnectionMultiplexer connectionMultiplexer) =>
{
await connectionMultiplexer.GetSubscriber().PublishAsync(Constants.DefaultChannel, request.Message);
return Results.Ok();
});
the background worker then gets the messages from redis channel and writes a log message:
using RedisPubSub.ServiceDefaults;
using StackExchange.Redis;
namespace Worker;
public class Worker(ILogger<Worker> logger, IConnectionMultiplexer connectionMultiplexer) : BackgroundService
{
protected override async Task ExecuteAsync(CancellationToken stoppingToken)
{
while (!stoppingToken.IsCancellationRequested)
{
await connectionMultiplexer.GetSubscriber().SubscribeAsync(Constants.DefaultChannel, (channel, message) =>
{
logger.LogWarning("Here is the message: {Message} from channel: {ChannelName}", message, Constants.DefaultChannel);
});
await Task.Delay(5000, stoppingToken);
}
}
}

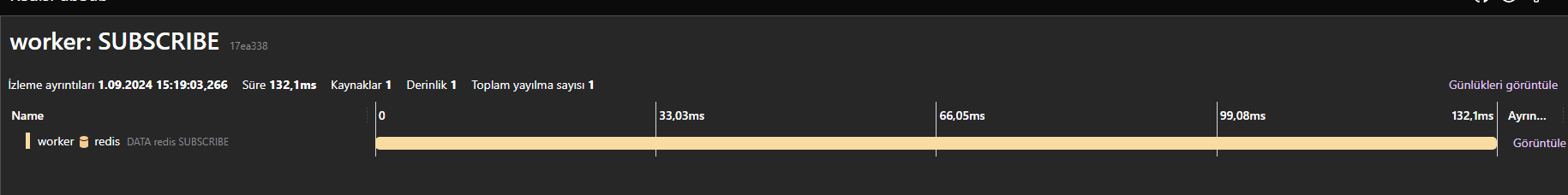

here are screenshots from testing:
conclusion
with .net aspire, implementing redis pub/sub becomes straightforward. this pattern is excellent for building scalable, real-time applications with decoupled components. as you explore further, you'll find even more ways to leverage redis and .net aspire in your cloud-native applications.
for the complete source code of this example, you can visit: https://github.com/eminvergil/aspire-samples
